Scale and Status
Architectural Overview
| Area | Building Area 718.16 m2, Total Floor Area 2,990.53 m2 |
|---|---|
| Opening Date | March 27, 2012 |
| Size | 2 underground floors - 4 aboveground floors 7 test rooms including insulation mock-up room 4 household units, parking lot, and machinery room |
History
| 2003 | Established Standard Experimental Building in Eumseong, Chungcheongbuk-do |
|---|---|
| Dec. 2011 | Completed Dongbaek District Residential Performance Laboratory |
| Mar. 2018 | Integrated technology laboratories and facilities (Concrete materials, eco-friendly, foundation environment, equipment) |
Floor-by-floor Facility Layout Status
| Category | Tasks Performed | Key Facilities | |
|---|---|---|---|
| 2 Underground floors – 1 aboveground floor | Inspection of key materials and evaluation of performance | Multipurpose test room Condensation mock-up test room Concrete materials test room Noise test room Waterproof test room |
|
| Aboveground floors 2-3F | Units 201 and 202 Mock-up households | Residential performance demonstration of new materials and new construction methods |
|
| Units 301 and 302 Mock-up households | Residential performance demonstration of the availability of renewable energy and heating and cooling |
|
|
| 4F | Evaluation of performance | Foundation environment test room Eco-friendly test room |
|
| Rooftop | Solar power equipment | ||
Concrete Material Test Room
-
- Test Room Overview
-
- Evaluation of concrete characteristics and performance through material and mechanical tests
- Concrete durability (neutralization, salt damage, permeability) tests and hydration heat characteristic evaluations
- Equipment owned: 43 types in total including 500-ton UTM, scanning electron microscope
Main Equipment
| Equipment | Purpose of Use |
|---|---|
| 500-ton UTM | Compression, tensile, and splitting tests for concrete |
| Dynamic elasticity tester | Evaluation of dynamic properties of concrete |
| Scanning electron microscope (SEM) | Analysis of concrete microstructure and constituent elements (maximum magnification 150,000x) |
| Thermal insulation temperature rise tester | Measurement of thermal insulation temperature and reaction rate coefficient for concrete hydration heat prediction and evaluation |
-

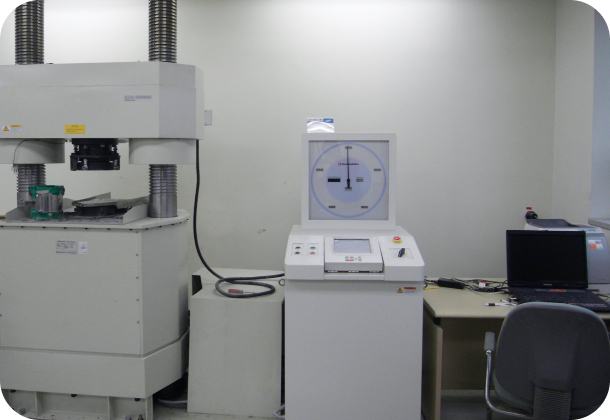

500-ton U.T.M
-

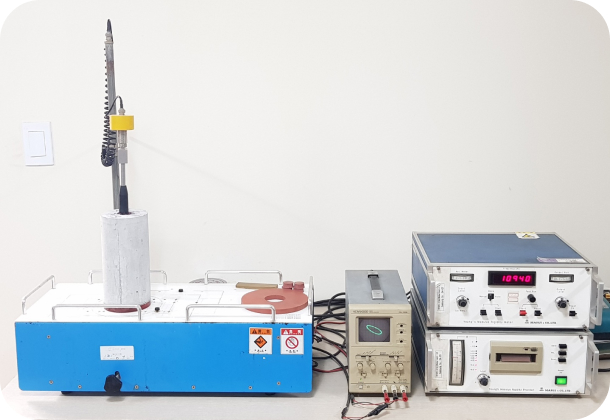

Dynamic elasticity tester
-
Scanning electron microscope (SEM)
-
Thermal insulation temperature rise tester
Eco-friendly Test Room
-
- Test Room Overview
-
- Performance evaluation and monitoring to improve indoor air quality and provide a healthy air environment
- Evaluation of architectural material emissions, measurement of indoor air quality, and analysis of odor and stench-related causes
- Equipment owned: Total of 31 types including GCMS, HPLC, small chamber system
Main Equipment
| Equipment | Purpose of Use |
|---|---|
| Thermal desorption-gas chromatograph and mass spectrometer | Precise analysis and evaluation of air pollutants and harmful chemicals |
| High-performance liquid chromatograph | Precise analysis and evaluation of air pollutants and harmful chemicals |
| Small chamber system | Contaminant emission test chamber for finishing materials (20L) |
| Material odor evaluation system | Odor intensity evaluation system for key materials and odor sources (CLIMPAQ) |
| Radon measurement equipment | Measurement of radon concentration in indoor air |
-

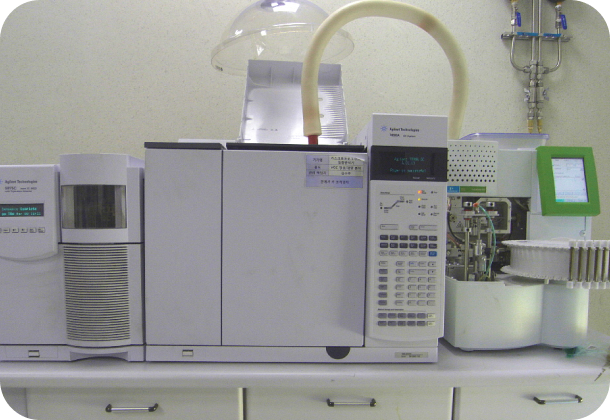

Gas chromatograph and mass spectrometer
-
High-performance liquid chromatograph
-

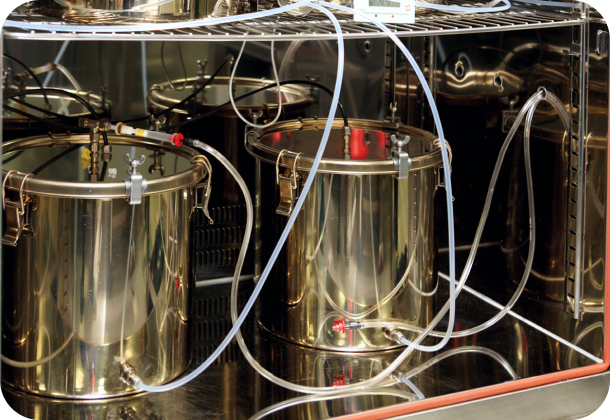

Small chamber system
-
Material odor evaluation system

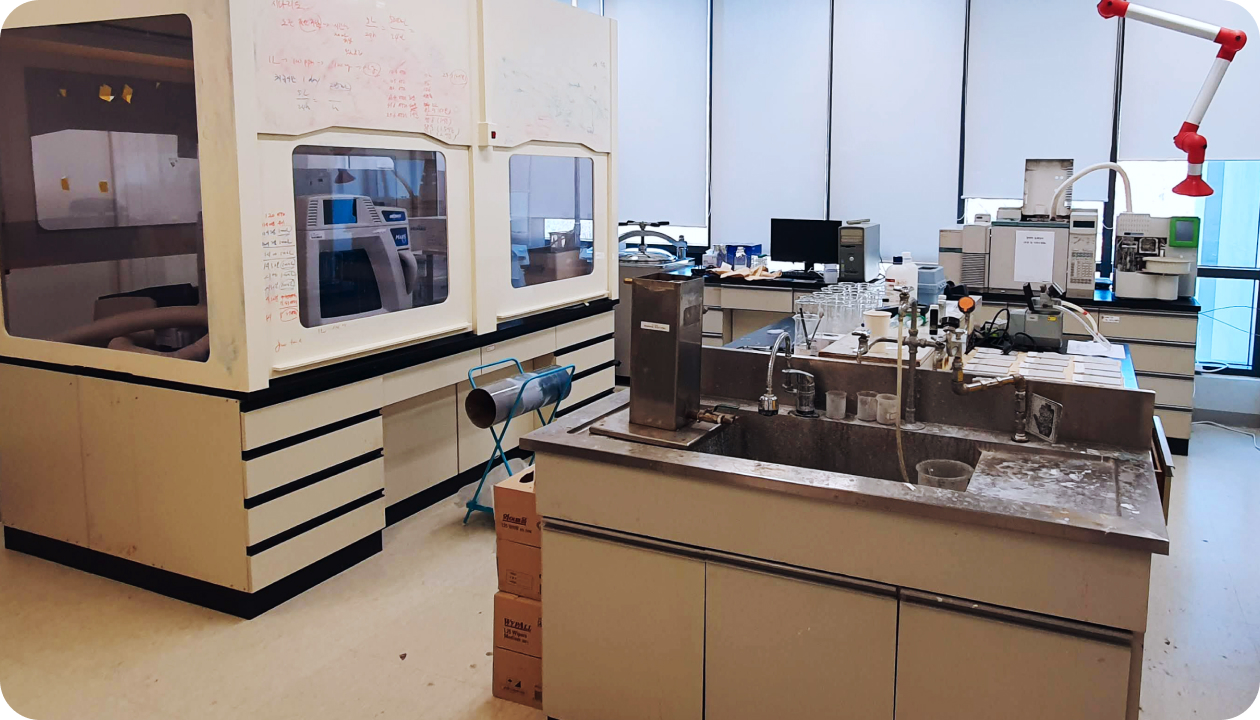

Foundation Environment Test Room
-
- Test Room Overview
-
- On-site sample analysis for environmental fields (process test method)
- Technology development and preliminary verification tests
- Equipment: Total of 31 units, including heavy metals analyzer and 13 other types
Main Equipment
| Equipment | Purpose of Use |
|---|---|
| Heavy metals analyzer | Analysis of heavy metals content in samples |
| Portable water quality meter | Evaluation of basic water quality items |
| UV-Spectroscopy | Process test method (water and air environment fields) |
| Digital salinity concentration meter | Measurement of salinity concentration on metal surfaces |
| Digital olfactory system | Visualization of odorous substances in the air (graph and pattern formation) |
-
Heavy metals analyzer
-

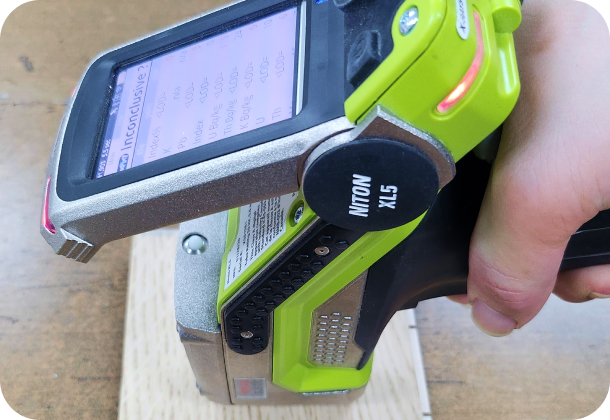

Metal type analysis
-
UV-Spectroscopy
-
Digital olfactory system
Thermal Insulation Mock-up Test Room
-
- Test Room Overview
-
- Assessment of thermal insulation and condensation prevention performance of building envelope systems, such as windows and walls, by installing them under identical residential conditions
- Capable of maintaining -15 ℃ outdoor, 25 ℃ indoor, and 50% humidity conditions (Seoul region)
- Capable of installing samples identical to actual on-site windows
Main Equipment
| Equipment | Purpose of Use |
|---|---|
| Window condensation test room | Measurement of condensation prevention performance by window type and location (consisting of constant temperature and humidity room and low temperature room) |
| Wall condensation test room | Analysis of condensation prevention performance based on insulation type and construction method (consisting of constant temperature and humidity room and low-temperature room) |
| Sample storage room | Comprised of a constant temperature and humidity room and a control room for precise measurement of thermal conductivity of materials |
-
Window condensation test room
-
Wall condensation test room
-
Low-temperature room
-

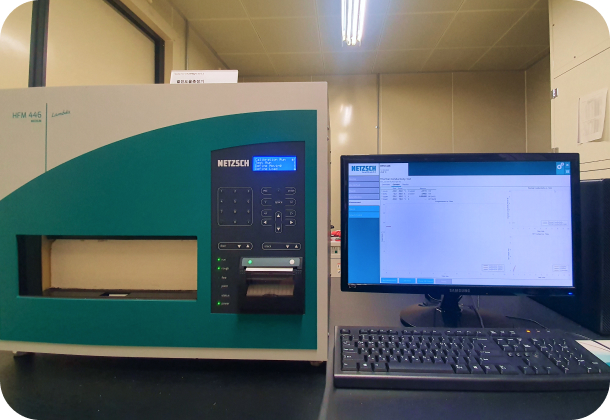

Thermal conductivity meter
